Deploying Django in AWS Fargate

Deploying Django in AWS Fargate

We will deploy a Django app in AWS Fargate and use Aurora serverless as the db.

AWS Fargate lets users build and deploy containerized applications without having to manage the underlying servers themselves.

Fargate is a compute engine that allows running containers in Amazon ECS without needing to manage the EC2 servers for cluster. We only deploy our Docker applications and set the scaling rules for it. Fargate is an execution method from ECS.

With AWS Fargate, we pay only for the amount of vCPU and memory resources that our containerized application requests ie We pay only for what we use.

Docker is a tool designed to make it easier to create, deploy, and run applications by using containers. Containers allow us to package up an application with all of the parts it needs, like libraries and other dependencies, and ship it all out as one package.

And Aurora Serverless is an on-demand, auto-scaling Relational Database System by Amazon AWS(presently compatible with only MySQL). It automatically starts up & shuts down the DB depending on the requirement.

Prerequisites: AWS account and configure the system with aws credentials & aws-cli and Docker in the system.

Go to Django app

We will use Pollsapi (https://github.com/agiliq/building-api-django) as the django project.

Now go inside the pollsapi app in this repo.

Let us create a virtual environment and install the requirement.txt

$ pip install -r requirements.txt

and in polls/settings.py add aws subdomain to the ‘ALLOWED_HOSTS’

...
ALLOWED_HOSTS = ["*"]  # for all domains - only for development
...

And run the application

$ ./manage.py runserver

which will show us

Build the application using Docker

Now lets now containerize our application using Docker. Let us create a file named Dockerfile in the pollsapi folder and in the same level as manage.py .

$ touch Dockerfile

and add the following lines

FROM python:3
ENV PYTHONUNBUFFERED 1
RUN mkdir /code
WORKDIR /code
COPY requirements.txt /code/
RUN pip install -r requirements.txt
COPY . /code/

ENTRYPOINT ["python", "manage.py"]
CMD ["runserver", "0.0.0.0:8800"]

In this Dockerfile, we install Python and our application and then specify how we want to run our application in the container.

Let us Build the Docker container for our pollsapi app

$ docker build -t pollsapi-app .

The docker build command builds Docker images from a Dockerfile. We will run the container we created in the previous step.

$ docker run -p 8800:8800 -t pollsapi-app
February 19, 2019 - 13:22:46
Django version 2.0.3, using settings 'pollsapi.settings'
Starting development server at http://0.0.0.0:8800/
Quit the server with CONTROL-C.

now when we go to the url 0.0.0.0:8800, we will see

Deploying our application using AWS Fargate

Here, we will deploy our container to Amazon’s Elastic Container Repository (ECR) and then launch the application using Fargate.

Create a new repository in ECR

Run the following command to create a new repository for the application:

$ aws ecr create-repository --repository-name pollsapi-app --region us-east-1

If the command is successful, we should see:

{
    "repository": {
        "repositoryArn": "arn:aws:ecr:us-east-1:822502757923:repository/pollsapi-app",
        "registryId": "822502757923",
        "repositoryName": "pollsapi-app",
        "repositoryUri": "822502757923.dkr.ecr.us-east-1.amazonaws.com/pollsapi-app",
        "createdAt": 1550555101.0
    }
}

This will create a repository by name pollsapi-app in AWS ECR

Now click on the repository name and go inside

we will see that we have no image here, click on Push Commands to get a list of commands that we need to run to be able to push our image to ECR. Follow the steps as they are given.

Now we have pushed our image in ECR.

After pushing the image, we can see the image-url

Create Fargate Application

Now, let us go to the link https://console.aws.amazon.com/ecs/home?region=us-east-1#/getStarted and create a new Fargate Application. Click on Get Started.

Now select under the container definition choose Custom and click on Configure.

In the popup, enter a name for the container and add the URL to the container image. We should be able to get the URL from ECR. The format of the URL should be similar to the one listed below.

In the cluster section, give the cluster name.

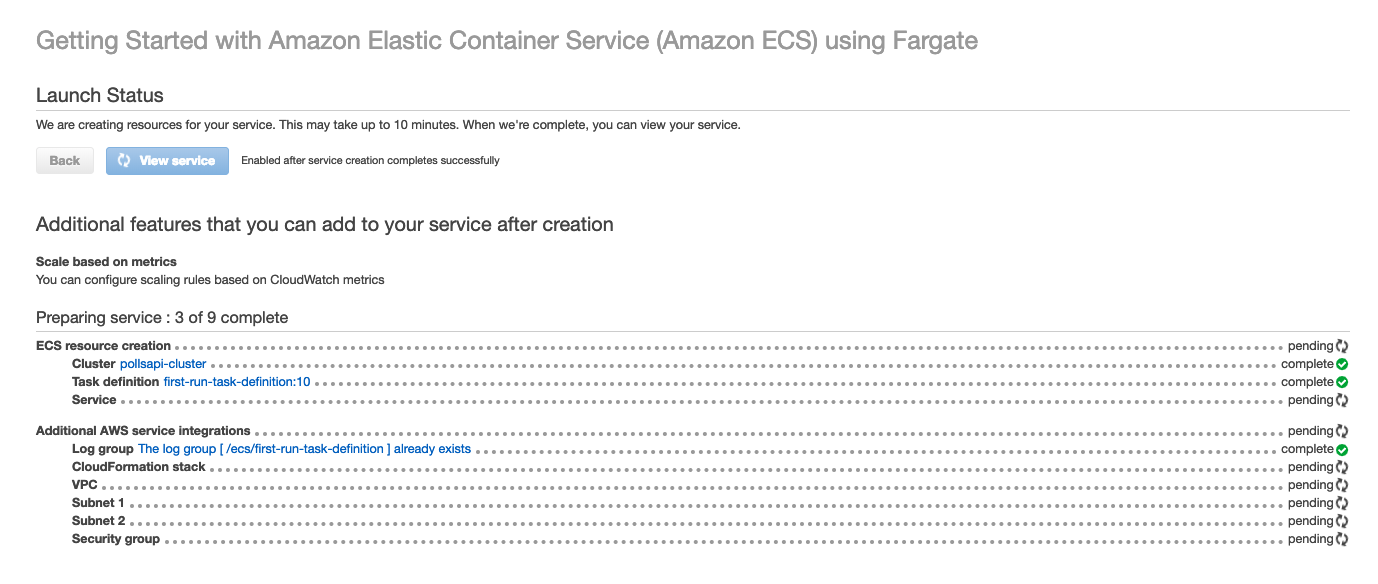

Now we can see the status of the service we just created. Wait for the steps to complete and then click on View Service.

Once on the services page, click on the Tasks tab to see the different tasks running for our application. Click on the task id.

Now let us go to the url in the public-ip with the port http://3.88.173.94:8800, we can see

to check logs we have to go to the logs tab in the services page

Now let us create an Aurora Serverless to link it with

Setup Serverless MySQL Database

To set up Aurora serverless DB follow https://www.agiliq.com/blog/2019/01/complete-serverless-django/#setup-serverless-mysql-database

Connect Our App to MySQL DB

While creating Aurora-serverless make sure that Fargate and Aurora are in same VPC

To connect our Django App to aurora db, follow https://www.agiliq.com/blog/2019/01/complete-serverless-django/#connect-django-to-mysql-db

After configuring our settings.py file should have a similar database config

...

DATABASES = {
    'default': {
        'ENGINE': 'django.db.backends.mysql',
        'NAME': 'pollsdb', # dbname
        'USER': 'polls_admin', # master username
        'PASSWORD': 'pollsadmin', # master password
        'HOST': 'pollsapi-cluster.cluster-chcxxxxx.us-east-2.rds.amazonaws.com', # Endpoint
        'PORT': '3306',
    }
}
...

Update Security Group Endpoint

Update Security Group Endpoint of Aurora and add Security Group of Fargate in the inbound rules, follow https://www.agiliq.com/blog/2019/01/complete-serverless-django/#update-security-group-endpoint

Setup the Database

We will write a command to create the database. To setup the database follow,

$ cd polls
$ mkdir management
$ cd management
$ touch __init__.py
$ mkdir commands
$ cd commands
$ touch __init__.py
$ touch create_db.py

# polls/management/commands/create_db.py
import sys
import logging
import MySQLdb

from django.core.management.base import BaseCommand, CommandError
from django.conf import settings

rds_host = 'pollsapi-cluster.cluster-chc62yjp918f.us-east-2.rds.amazonaws.com'
db_name = 'pollsdb'
user_name = 'polls_admin'
password = 'pollsadmin'
port = 3306

logger = logging.getLogger()
logger.setLevel(logging.INFO)


class Command(BaseCommand):
    help = 'Creates the initial database'

    def handle(self, *args, **options):
        print('Starting db creation')
        try:
            db = MySQLdb.connect(host=rds_host, user=user_name,
                                 password=password, db="mysql", connect_timeout=5)
            c = db.cursor()
            print("connected to db server")
            c.execute("""CREATE DATABASE pollsdb;""")
            c.execute(
                """GRANT ALL PRIVILEGES ON db_name.* TO 'polls_admin' IDENTIFIED BY 'pollsadmin';""")
            c.close()
            print("closed db connection")
        except:
            logger.error(
                "ERROR: Unexpected error: Could not connect to MySql instance.")
            sys.exit()

Now let us create another command to create admin, follow

$ cd polls
$ mkdir management
$ cd management
$ touch __init__.py
$ mkdir commands
$ cd commands
$ touch __init__.py
$ touch create_admin_user.py

# polls/management/commands/create_admin_user.py
import sys
import logging

from django.core.management.base import BaseCommand, CommandError
from django.contrib.auth.models import User
from django.conf import settings


class Command(BaseCommand):
    help = 'Creates the initial admin user'

    def handle(self, *args, **options):
        if User.objects.filter(username="admin").exists():
            print("admin exists")
        else:
            u = User(username='admin')
            u.set_password('adminpass')
            u.is_superuser = True
            u.is_staff = True
            u.save()
            print("admin created")
        sys.exit()

this command will create the admin user if it does not exists

Now next create a shell script file with name start.sh, and write the following

$ touch start.sh

#!/bin/sh
python manage.py create_db
python manage.py migrate
python manage.py create_admin_user
python manage.py runserver 0.0.0.0:8800
exec "$@"

And give it permissions

$ chmod +x start.sh

And Now update the Dockerfile

FROM python:3
ENV PYTHONUNBUFFERED 1
RUN mkdir /code
WORKDIR /code
COPY requirements.txt /code/
RUN pip install -r requirements.txt
COPY . /code/

COPY ./start.sh /code/           #  to copy the script
ENTRYPOINT ["/code/start.sh"]    #  add the script file as entrypoint

Now lets push the updated container image to ECS by following the Push Commands.

With Fargate, our containers are always started with the latest ECS image and Docker version.

Let us go to the http://3.88.173.94:8800/admin, we can see Now we can see that we can login and that our Database connection is established fine.

Now our Django app is running in AWS Fargate and used Aurora Serverless as the DB.

This is part 4 of Serverless Deployments for Django,

Check out part 1 Deploying completely serverless Django with Zappa and Aurora Serverless

Check out part 2 Deploying Serverless Django with Zeit and RDS Postgres

Check out part 3 Deploying completely serverless Django with Apex Up and Aurora Serverless
